視覺龍VD300係列3D高度差測量係統

品牌:
視覺龍
價格:
0.00
起訂:
0
供貨總量:
0
發貨期限:
自買家付款之日起 3 天內發貨
地址:
深圳市龍華新區觀瀾鎮觀光路1301號銀星工業園銀星大廈9樓D906-908
有效期限:
長期有效
最後更新:
2017-02-24
商品詳情

     視覺龍VD300係列3D視覺係統是針對工廠車間苛刻的環境測量物體的高度差異或共麵度。其簡單與靈活的設計是基於激光三角測量法，通過提高產品有效檢測而使工廠減少成本和實現利潤的最大化，完全可以替代進口產品。

特點：
1.高精度、穩定可靠；
2.無需編程，輕鬆配置；
3.基準麵選擇和傾斜校正；
4.光學模塊、激光安全等級、外包裝等可以定製，以滿足客戶需求。


單相機處理（基本功能）

                            三維圖像獲取方法

利用結構光掃描方法，通過結構光及其在相機上的成像可以通過三角關係計算出表麵物體的高度。

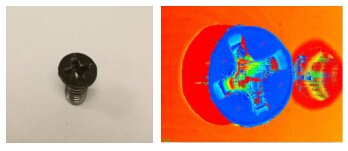

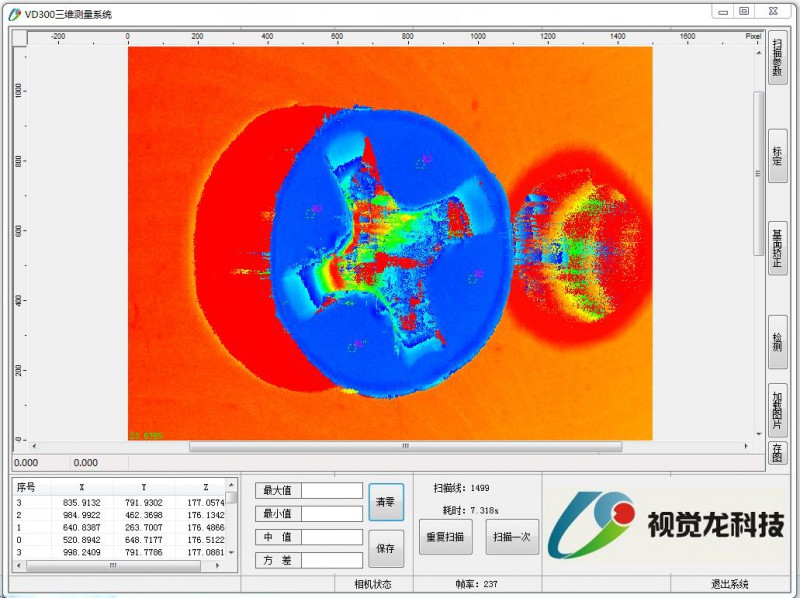

                              掃描圖像成偽彩圖

利用相機所拍攝結構光得到一個(ge) 高度，轉換為(wei) 顏色以區分不同高度。





IO控製
    IO通信口來控製相機觸發拍照軟件檢測，同時發送Fail /Pass信號給報警器來報警。同時還可創建數據庫來保存檢測記錄，出錯產品圖片等需要的數據文件，通過串口/Ethernet網口輸出。、

兩個相機的方案 （多相機方案）
      以防一個相機精度不夠，可以通過利用兩個相機同時來處理實現，利用兩個相機共同完成一幅圖，可以利用圖像拚接技術實現把兩個相機呈現的兩幅圖拚接成一幅圖。。

圖7    圖像拚接技術

      每個產品的檢測速度10秒以下。檢測精度取決於很多因素，具體檢測精度還由具體產品和環境而定。在速度容許的情況下，雙相機方案還可以拓展為三相機或四相機方案，以獲得更高的測量精度。

VD300標準型號及技術參數
