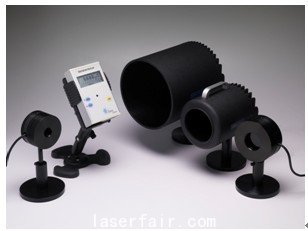

Astral S係列焦熱電激光功率計

Astral S係列焦熱電激光功率計具有便攜，可靠，結實，簡單，準確的特點，加上10W大功率範圍，已成為(wei) 研發、維修人員的良好助手。大LCD顯示，合理的按鍵設置，使操作更為(wei) 簡便。提供RS232通信功能，可實現實時光功率監測。在科研、通訊、醫療等測試領域廣泛使用。

特點：
 功率或能量測量
 外殼緊密包裝
 符合美國國家標準
 微處理控製
 簡易使用界麵
 可用衰減器擴大測量範圍

主要參數：

ASTRALTM SERIES S CALORIMETER SECIFICATIONS

模型

AC2500S

AC25FXS

ACX25FXS

AC2501S

ACX2501S

ACX2504S

AC25UVS

吸收類型

Surface

Surface

Surface

Volume

Volume

Volume

Volume

孔徑直徑

25.4 mm

25.4 mm

8 mm

25.4 mm

8 mm

25.4 mm

25.4 mm

光譜響應

0.25-35μm

0.193-26μm

0.4-2μm

0.266-1.2μm

0.4-1.2μm

0.85-4.2μm

0.193-0.36μm

最大平均功率

10W

最小平均功率

1mW

噪音水平

10 W/J

最大P.D.

200W/ cm²

6kW/cm²

48kW/ cm²

Note 1

Note 2

Note 4

Note 3

最大P.P.D

1M W/ cm²

Note 15

Note 16

Note 5

8.5GW/ cm²

Note 7

Note 6

最大信號脈衝(chong)

30J

最大E.D.

Note 8

Note 9

Note 10

Note 11

Note 12

Note 14

Note 13

精確性

<1%

精度

±3%

響應時間

3s

Dims DXL-in

3.8×2.2

3.8×2.2

3.8×3.8

3.8×2.2

3.8×3.8

3.8×2.2

3.8×2.2

Cm

9.5×5.6

9.5×5.6

9.5×9.7

9.5×5.6

9.5×9.7

9.5×5.6

9.5×5.6

重量-lbs/kg

1.5/0.7

1.5/0.7

1.5/0.8

1.5/0.7

1.5/0.8

1.5/0.7

1.5/0.7

#p#分頁標題#e#

ASTRALTM SERIES S CALORIMETER SECIFICATIONS

模型

AC5000S

AC50FXS

ACX50FXS

AC5001S

ACX5001S

ACX5004S

AC50UVS

吸收類型

Surface

Surface

Surface

Volume

Volume

Volume

Volume

孔徑直徑

50.8mm

50.8mm

16mm

50.8mm

16mm

50.8mm

50.8mm

光譜響應

0.25-35μm

0.193-26μm

0.4-2μm

0.266-1.2μm

0.4-1.2μm

0.85-4.2μm

0.193-0.36μm

最大平均功率

30W

最小平均功率

40mW

噪音水平

400μW/μJ

最大P.D.

200W/ cm²

6kW/cm²

48kW/ cm²

Note 1

Note 2

Note 4

Note 3

最大P.P.D

1M W/cm²

Note 15

Note 16

Note 5

8.5GW/ cm²

Note 7

Note 6

最大信號單脈衝(chong)

100J

最大E.D.

Note 8

Note 9

Note 10

Note 11

Note 12

Note 14

Note 13

精確性

<1%

精度

±3%

響應時間

3s

Dims DXL-in

4.8×2.3

4.8×2.3

4.8×3.9

4.8×2.3

4.8×3.9

4.8×2.3

4.8×2.3

Cm

12.1×5.8

12.1×5.8

12.1×10.0

12.1×5.8

12.2×10.0

12.1×5.0

12.1×5.8

重量-lbs/kg

2.9/1.3

2.9/1.3

3.1/1.4

2.9/1.3

1.5/0.8

3.1/1.4

2.9/1.3

#p#分頁標題#e#

ASTRALTM SERIES S LARGE APERTURE CALORIMETER

模型

360401S

380401S

380402S

384UV5S

360801S

380801S

380802S

388UV5S

吸收類型

Surface

Volume

Volume

Volume

Surface

Volume

Volume

Volume

孔徑直徑

100mm

20mm

光束直徑

5cm

7.5cm

光譜響應

0.25-35μm

0.266-1.2μm

0.9-1μm

0.193-0.36μm

0.25-35μm

0.266-1.2μm

9-11μm

0.193-0.36μm

最大平均功率

150mW

700mW

噪音水平

1.5mW/mJ

70mW/mJ

最大P.D

200W/cm²

Note 17

4W/cm²

Note 3

200W/cm2

Note 18

4W/cm²

Note 3

最大P.P.D

1MW/cm²

Note 19

100MW/cm²

Note 6

1MW/cm²

Note 20

100MW/cm²

Note 6

最大信號脈衝(chong)

300J

1000J

500J

1000J

1000J

最大E.D.

Note 8

Note 21

4J/cm²

Note 13

Note 8

Note 22

4J/cm²

Note 13

精確性

<1%

<1%

精度

±5%

±5%

響應時間

5s

3s

Dims DXL-in /cm

6.0×8.0/15.2×20.3

9.0×10.0/22.9×25.4

重量-lbs/kg

6/2.7

16.3/7.3

#p#分頁標題#e#

NOTES

NOTES

Note1

AC2500S,AC5001S

30W/cm²@1064nm,23W/cm²@532nm,

4.5W/cm²@355nm,175mW/cm²@266nm,

Note2

ACX2501S,ACX5001S

30W/cm²@1064nm,23W/cm²@532nm,

Note3

AC25UVS,AC50UVS,384UV5S,388UVS

50W/cm²@355nm

Note4

AC2504S, AC5004S

35W/cm²@1064nm

Note5

AC2501S,AC5001S

100GW/cm²@1064nm,78GW/cm²@532nm,

29GW/cm²@355nm,3.5GW/cm²@266nm,

Note6

AC250UVS,AC50UVS,384UV5S,388UV5S

重複脈衝(chong) ：101MW/cm²@355nm

單脈衝(chong) ：3.5GW/cm²@355nm

Note7

AC2504S,AC5004S

125GW/cm²@1064nm

Note8

AC2500S,AC5000S,360401S,360801S

1100×(脈寬）^1/2<200J/cm²

Note9

AC250FXS,AC50FXS

4150×(脈寬）^1/2<123J/cm²

Note10

ACX25FXS,AC50FXS

39600×(脈寬）^1/2<36.9J/cm²

Note11

AC2501S,AC5001S

重複脈衝(chong) ：4.1J/cm²@1064nm,3.2J/cm²@532nm,

1.2J/cm²@355nm,24mJ/cm²@266nm

單脈衝(chong) ：8J/cm²@1064nm,6.2J/cm²@532nm,

2.3J/cm²@355nm,46mJ/cm²@266nm

Note12

ACX2501S,AC5001S

重複脈衝(chong) ：32.8J/cm²@1064nm,25.6J/cm²@532nm

單脈衝(chong) ：8J/cm²@1064nm,6.2J/cm²@532nm

Note13

AC25UVS,AC50UVS,384UV5S,388UV5S

重複脈衝(chong) ：1.1J/cm²@355nm,

單脈衝(chong) ：40J/cm²@355nm

Note14

AC25004S,AC5004S

重複脈衝(chong) ：4.8J/cm²@1064nm,

單脈衝(chong) ：10J/cm²@1064nm

Note15

AC25FXS,AC50FXS

脈衝(chong) 最大峰值功率：70MW/cm²@1064nm

Note16

ACX25FXS,ACX50FXS

脈衝(chong) 最大峰值功率：560MW/cm²@1064nm

Note17

380401S

27W/cm²@1064nm,21W/cm²@532nm,

7.7W/cm²@355nm,158mW/cm²@266nm,

Note18

380801S

13.5W/cm²@1064nm,10.5W/cm²@532nm,

3.85W/cm²@355nm,79mW/cm²@266nm,

Note19

380401S

90GW/cm²@1064nm,71GW/cm²@532nm,

27GW/cm²@355nm,530MW/cm²@266nm,

Note20

380801S

45GW/cm^{2#p#分頁標題#e#}@1064nm,35.5GW/cm²@532nm,

13.5GW/cm²@355nm,265MW/cm²@266nm,

Note21

380401S

重複脈衝(chong) ：3.7J/cm²@1064nm,2.9J/cm²@532nm,

1J/cm²@355nm,20mJ/cm²@266nm

單脈衝(chong) ：7J/cm²@1064nm,5.6J/cm²@532nm,

2.1J/cm²@355nm,41mJ/cm²@266nm

Note22

380801S

重複脈衝(chong) ：1.85J/cm²@1064nm,1.45J/cm²@532nm,

0.5J/cm²@355nm,10mJ/cm²@266nm

單脈衝(chong) ：3.5J/cm²@1064nm,2.8J/cm²@532nm,

1.05J/cm²@355nm,20.5mJ/cm²@266nm

轉載請注明出處。

• 3D打印火箭升空人類在航天探索中邁出的一個裏	• 太空探索中的激光技術應用
• 睿智時代助力奧潤激光實現數智化管理	• 激光動力無人機，中國科學家實現“永久”空中飛
• 激光教父攻克“卡脖子”35項關鍵技術之一的激光	• 研究人員設計了基於等離子體的全息透鏡
• 中國科學家研發迄今像素最高的固態激光雷達，產	• 國產激光武器厲害了，創世界首次，沙特：好用又
• NASA“毅力號”正在使用激光鑽進火星岩石	• 全球首次！“寂靜狩獵者”成功擊落無人機，中國

ASTRALTM SERIES S CALORIMETER SECIFICATIONS
模型	AC2500S	AC25FXS		ACX25FXS	AC2501S	ACX2501S	ACX2504S	AC25UVS
吸收類型	Surface	Surface		Surface	Volume	Volume	Volume	Volume
孔徑直徑	25.4 mm	25.4 mm		8 mm	25.4 mm	8 mm	25.4 mm	25.4 mm
光譜響應	0.25-35μm	0.193-26μm		0.4-2μm	0.266-1.2μm	0.4-1.2μm	0.85-4.2μm	0.193-0.36μm
最大平均功率	10W
最小平均功率	1mW
噪音水平	10 W/J
最大P.D.	200W/ cm²	6kW/cm²	48kW/ cm²		Note 1	Note 2	Note 4	Note 3
最大P.P.D	1M W/ cm²	Note 15	Note 16		Note 5	8.5GW/ cm²	Note 7	Note 6
最大信號脈衝(chong)	30J
最大E.D.	Note 8	Note 9	Note 10		Note 11	Note 12	Note 14	Note 13
精確性	<1%
精度	±3%
響應時間	3s
Dims DXL-in	3.8×2.2	3.8×2.2	3.8×3.8		3.8×2.2	3.8×3.8	3.8×2.2	3.8×2.2
Cm	9.5×5.6	9.5×5.6	9.5×9.7		9.5×5.6	9.5×9.7	9.5×5.6	9.5×5.6
重量-lbs/kg	1.5/0.7	1.5/0.7	1.5/0.8		1.5/0.7	1.5/0.8	1.5/0.7	1.5/0.7

ASTRALTM SERIES S CALORIMETER SECIFICATIONS
模型	AC5000S	AC50FXS	ACX50FXS	AC5001S	ACX5001S	ACX5004S	AC50UVS
吸收類型	Surface	Surface	Surface	Volume	Volume	Volume	Volume
孔徑直徑	50.8mm	50.8mm	16mm	50.8mm	16mm	50.8mm	50.8mm
光譜響應	0.25-35μm	0.193-26μm	0.4-2μm	0.266-1.2μm	0.4-1.2μm	0.85-4.2μm	0.193-0.36μm
最大平均功率	30W
最小平均功率	40mW
噪音水平	400μW/μJ
最大P.D.	200W/ cm²	6kW/cm²	48kW/ cm²	Note 1	Note 2	Note 4	Note 3
最大P.P.D	1M W/cm²	Note 15	Note 16	Note 5	8.5GW/ cm²	Note 7	Note 6
最大信號單脈衝(chong)	100J
最大E.D.	Note 8	Note 9	Note 10	Note 11	Note 12	Note 14	Note 13
精確性	<1%
精度	±3%
響應時間	3s
Dims DXL-in	4.8×2.3	4.8×2.3	4.8×3.9	4.8×2.3	4.8×3.9	4.8×2.3	4.8×2.3
Cm	12.1×5.8	12.1×5.8	12.1×10.0	12.1×5.8	12.2×10.0	12.1×5.0	12.1×5.8
重量-lbs/kg	2.9/1.3	2.9/1.3	3.1/1.4	2.9/1.3	1.5/0.8	3.1/1.4	2.9/1.3

ASTRALTM SERIES S LARGE APERTURE CALORIMETER
模型	360401S		380401S	380402S	384UV5S	360801S		380801S	380802S	388UV5S
吸收類型	Surface		Volume	Volume	Volume	Surface		Volume	Volume	Volume
孔徑直徑	100mm					20mm
光束直徑	5cm					7.5cm
光譜響應	0.25-35μm	0.266-1.2μm		0.9-1μm	0.193-0.36μm	0.25-35μm	0.266-1.2μm		9-11μm	0.193-0.36μm
最大平均功率	150mW					700mW
噪音水平	1.5mW/mJ					70mW/mJ
最大P.D	200W/cm²	Note 17		4W/cm²	Note 3	200W/cm2	Note 18		4W/cm²	Note 3
最大P.P.D	1MW/cm²	Note 19		100MW/cm²	Note 6	1MW/cm²	Note 20		100MW/cm²	Note 6
最大信號脈衝(chong)	300J					1000J	500J		1000J	1000J
最大E.D.	Note 8	Note 21		4J/cm²	Note 13	Note 8	Note 22		4J/cm²	Note 13
精確性	<1%					<1%
精度	±5%					±5%
響應時間	5s					3s
Dims DXL-in /cm	6.0×8.0/15.2×20.3					9.0×10.0/22.9×25.4
重量-lbs/kg	6/2.7					16.3/7.3

NOTES
Note1	AC2500S,AC5001S	30W/cm²@1064nm,23W/cm²@532nm, 4.5W/cm²@355nm,175mW/cm²@266nm,
Note2	ACX2501S,ACX5001S	30W/cm²@1064nm,23W/cm²@532nm,
Note3	AC25UVS,AC50UVS,384UV5S,388UVS	50W/cm²@355nm
Note4	AC2504S, AC5004S	35W/cm²@1064nm
Note5	AC2501S,AC5001S	100GW/cm²@1064nm,78GW/cm²@532nm, 29GW/cm²@355nm,3.5GW/cm²@266nm,
Note6	AC250UVS,AC50UVS,384UV5S,388UV5S	重複脈衝(chong) ：101MW/cm²@355nm 單脈衝(chong) ：3.5GW/cm²@355nm
Note7	AC2504S,AC5004S	125GW/cm²@1064nm
Note8	AC2500S,AC5000S,360401S,360801S	1100×(脈寬）^1/2<200J/cm²
Note9	AC250FXS,AC50FXS	4150×(脈寬）^1/2<123J/cm²
Note10	ACX25FXS,AC50FXS	39600×(脈寬）^1/2<36.9J/cm²
Note11	AC2501S,AC5001S	重複脈衝(chong) ：4.1J/cm²@1064nm,3.2J/cm²@532nm, 1.2J/cm²@355nm,24mJ/cm²@266nm 單脈衝(chong) ：8J/cm²@1064nm,6.2J/cm²@532nm, 2.3J/cm²@355nm,46mJ/cm²@266nm
Note12	ACX2501S,AC5001S	重複脈衝(chong) ：32.8J/cm²@1064nm,25.6J/cm²@532nm 單脈衝(chong) ：8J/cm²@1064nm,6.2J/cm²@532nm
Note13	AC25UVS,AC50UVS,384UV5S,388UV5S	重複脈衝(chong) ：1.1J/cm²@355nm, 單脈衝(chong) ：40J/cm²@355nm
Note14	AC25004S,AC5004S	重複脈衝(chong) ：4.8J/cm²@1064nm, 單脈衝(chong) ：10J/cm²@1064nm
Note15	AC25FXS,AC50FXS	脈衝(chong) 最大峰值功率：70MW/cm²@1064nm
Note16	ACX25FXS,ACX50FXS	脈衝(chong) 最大峰值功率：560MW/cm²@1064nm
Note17	380401S	27W/cm²@1064nm,21W/cm²@532nm, 7.7W/cm²@355nm,158mW/cm²@266nm,
Note18	380801S	13.5W/cm²@1064nm,10.5W/cm²@532nm, 3.85W/cm²@355nm,79mW/cm²@266nm,
Note19	380401S	90GW/cm²@1064nm,71GW/cm²@532nm, 27GW/cm²@355nm,530MW/cm²@266nm,
Note20	380801S	45GW/cm^{2#p#分頁標題#e#}@1064nm,35.5GW/cm²@532nm, 13.5GW/cm²@355nm,265MW/cm²@266nm,
Note21	380401S	重複脈衝(chong) ：3.7J/cm²@1064nm,2.9J/cm²@532nm, 1J/cm²@355nm,20mJ/cm²@266nm 單脈衝(chong) ：7J/cm²@1064nm,5.6J/cm²@532nm, 2.1J/cm²@355nm,41mJ/cm²@266nm
Note22	380801S	重複脈衝(chong) ：1.85J/cm²@1064nm,1.45J/cm²@532nm, 0.5J/cm²@355nm,10mJ/cm²@266nm 單脈衝(chong) ：3.5J/cm²@1064nm,2.8J/cm²@532nm, 1.05J/cm²@355nm,20.5mJ/cm²@266nm
